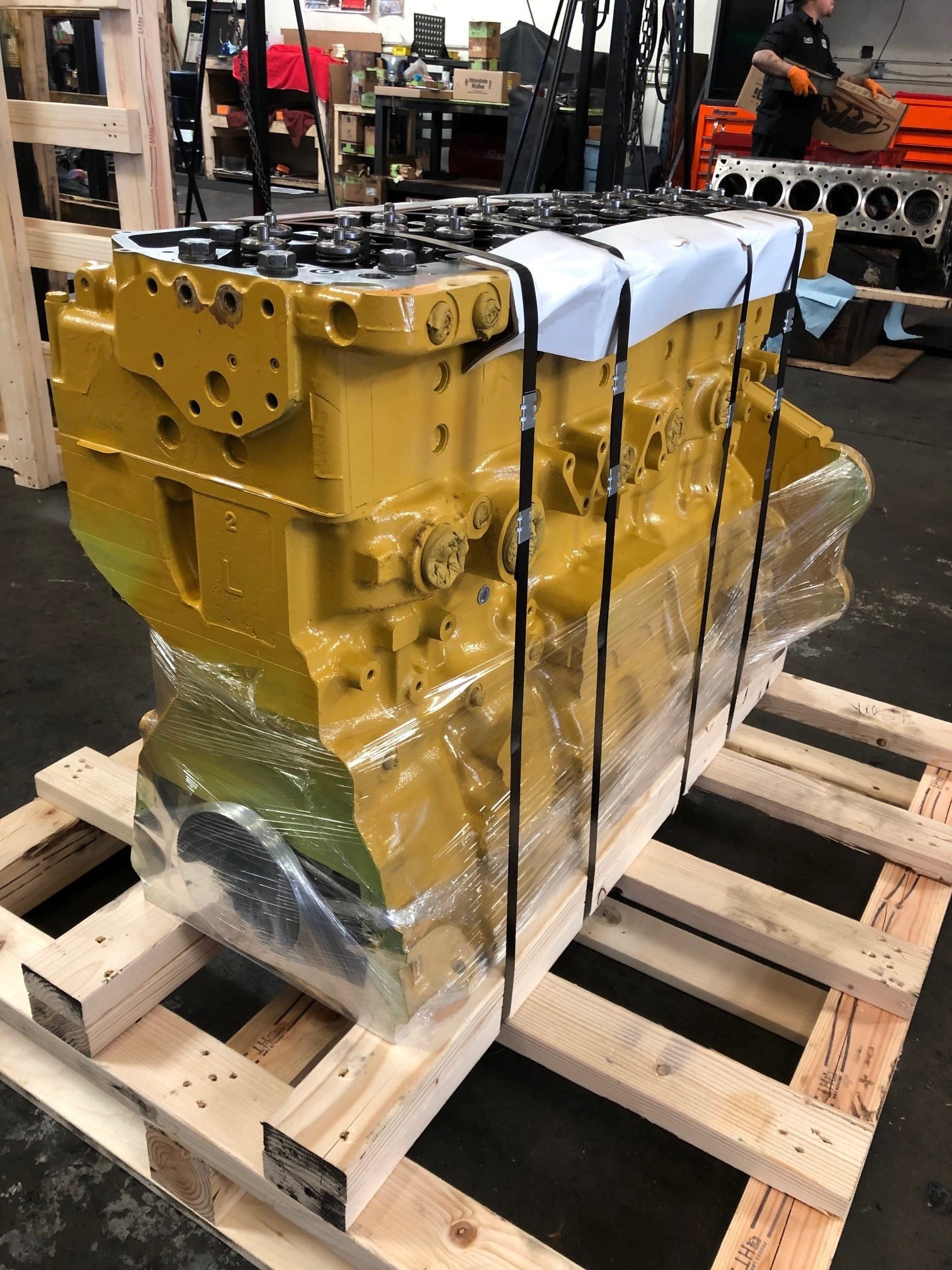

We offer a variety of both, over the road truck and industrial replacement engines for the Caterpillar C12. Our remanufactured CAT C12 engines come as a 3/4 long block and are not running trim condition. Our remanufacturing process strips the core down to the bare block whereas the camshaft, crankshaft, engine block, connecting rods and cylinder head are all built back to original OEM spec. The long block is then finished with new aftermarket gaskets, liners, bearings, pistons and rings.
Caterpillar C12 Remaufactured Long Block Engine Includes:
Reman Engine Block
Reman Cylinder Head
New Pistons
Reman Connecting Rods
Reman Camshaft and Lifters
Reman Crankshaft
Intermediate Cover
Timed Front Gear Group
Includes gaskets, liners, rings and ancillary components
Fuel Pumps, Turbos, Injectors, Manifolds, Pan are available for additional purchase
1 Year Parts and Labor Warranty (Unlimited Hours or Miles)
Extended Warranties Available
NOTE: Core Charge is applied after sale
ESN Prefix Families Available: (Truck): 2KS, BCY (Marine): C1Z
CAT C12 Specs:
Displacement – 11.9 L Displacement
Cylinders – 6
Type- Electronic
Combustion – Direct Injected
Horsepower – 430-515 HP
Max Torque – 1650 ft-lbs @1200 RPM
Optimal Running Speed – 1200-2100 RPM
Bore & Stroke – 5.10 x 5.90 in (129 x 140mm)
Compression Ratio: 17:2:1
Aspiration – Air-to-Air Cooled
Weight – 2588 lbs approx complete, dry
Oil Capacity – 37.6 qts.
