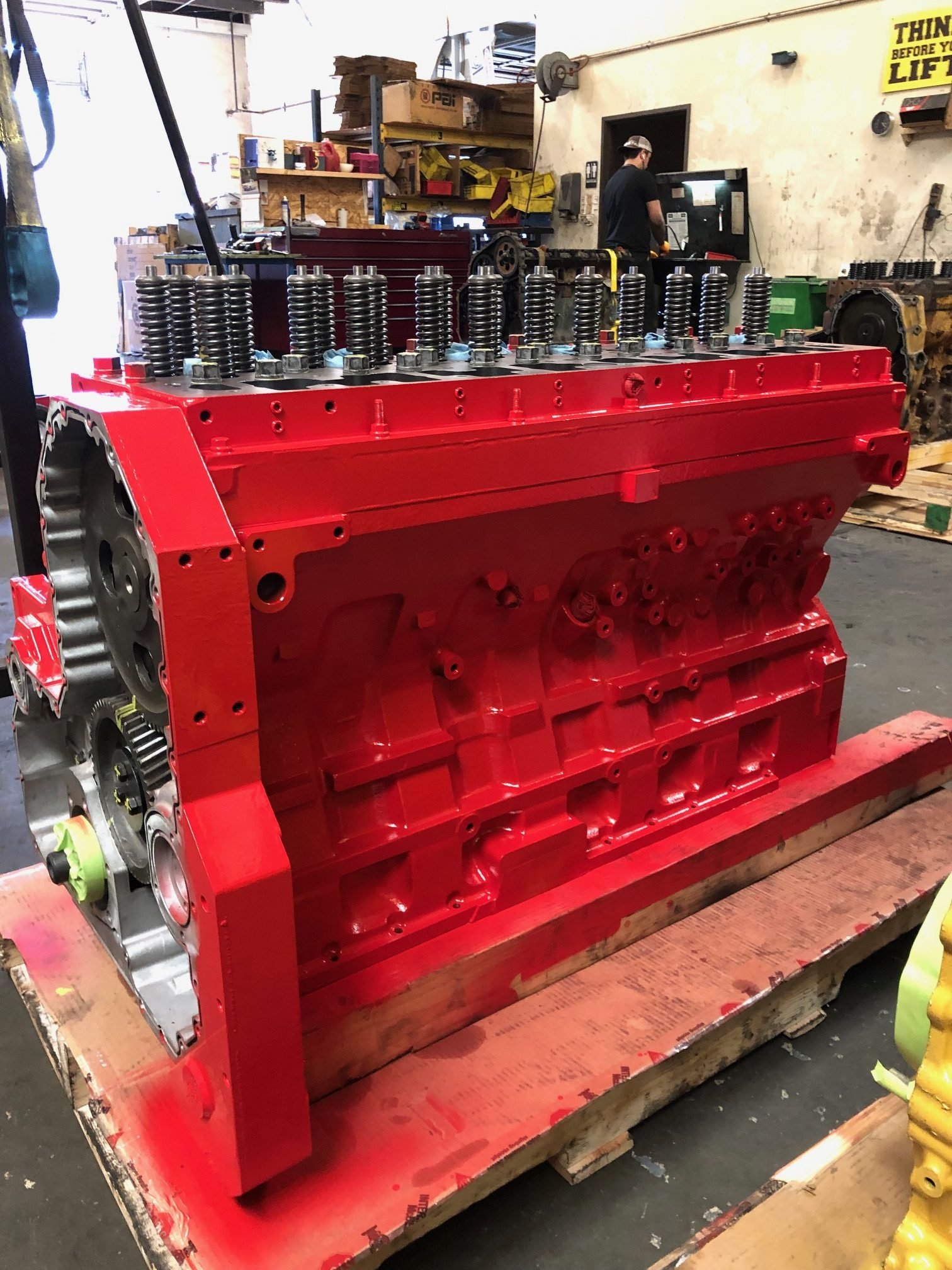

We offer a variety of both, over the road truck and industrial replacement engines for the Cummins ISM. Our remanufactured Cummins ISM engines come as a 3/4 long block and are not running trim condition. Our remanufacturing process strips the core down to the bare block whereas the camshaft, crankshaft, engine block, connecting rods and cylinder head are all built back to original OEM spec. The long block is then finished with new aftermarket gaskets, liners, bearings, pistons and rings.
Cummins ISM Remaufactured Long Block Engine Includes:
Reman Engine Block
Reman Cylinder Head
New Pistons
Reman Connecting Rods
Reman Camshaft and Lifters
Reman Crankshaft
Intermediate Cover
Timed Front Gear Group
Includes gaskets, liners, rings and ancillary components
Fuel Pumps, Turbos, Injectors, Manifolds, Pan are available for additional purchase
1 Year Parts and Labor Warranty (Unlimited Hours or Miles)
Extended Warranties Available
NOTE: Core Charge is applied after sale
Common CPLs (Critical Parts List): 2199, 2200, 2350, 2376, 2477, 2562, 2563, 2576, 2607, 2608, 2610, 2611, 2612, 2614, 2615, 2725, 2727, 2728, 2729, 2730, 2731, 2800, 3280, 3281, 3330, 8271, 8272, 8273, 8274, 8309, 8377, 8427, 8503, 8504, 8506, 8556, 8557, 8558, 8559, 8560, 8561, 8562, 8563, 8572
Cummins ISM Specs:
Displacement – 10.8 L Displacement
Cylinders – 6
Type- Electronic
Combustion – Direct Injected
Horsepower – 280-420 HP
Max Torque – 1150-1550 ft-lbs @1200 RPM
Optimal Running Speed – 2100 RPM
Bore & Stroke – 4.92 x 5.78 in (125 x 147mm)
Compression Ratio: 16:3:1
Aspiration – Turbocharged, Aftercooled
Weight – 2206 lbs approx, dry
Oil Capacity – 40.8 quarts
